FCX3M03900008U1L,Fujicom晶振,FCX-3M无源贴片晶振

当前位置：首页 » 日产进口晶振 » Fujicom晶振 » FCX3M03900008U1L,Fujicom晶振,FCX-3M无源贴片晶振

prevnext

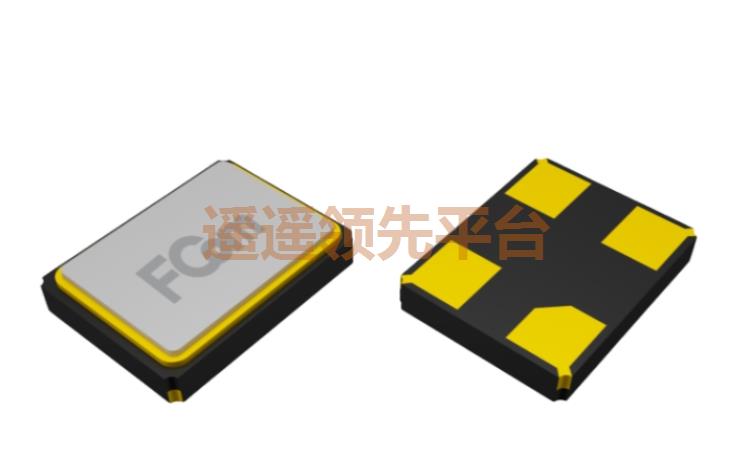

FCX3M03900008U1L,Fujicom晶振,FCX-3M无源贴片晶振

频率：39 MHz

尺寸：3.20mm x 2.50mm

原厂型号 Original model ：	FCX3M03900008U1L
品牌 brand ：	Fujicom晶振
型号名称 Model name：	FCX-3M
Type 系列：	MHz Crystal
频率 frequency ：	39 MHz
Frequency Stability频率稳定度	±50ppm
frequency tolerance频率容差	±10ppm
Load capacitance 负载电容	8pF
Size / Dimension 尺寸	3.20mm x 2.50mm

订购热线：13380314981

FCX3M03900008U1L,Fujicom晶振,FCX-3M无源贴片晶振详细参数

原厂型号 Original model ：	FCX3M03900008U1L
品牌 brand ：	Fujicom富士通晶振
型号名称 Model name：	FCX-3M
Type 系列：	MHz Crystal
频率 frequency ：	39 MHz
Frequency Stability频率稳定度	±50ppm
frequency tolerance频率容差	±10ppm
Load capacitance 负载电容	8pF
Size / Dimension 尺寸	3.20mm x 2.50mm
Package Height 厚度	0.70mm
ESR (Equivalent Series Resistance)ESR（等效串联电阻）	-
Operating Temperature 工作温度	-40°C ~ 105°C
Termination 脚位	4 pad
Package Type 封装类型	4-SMD
Packaging 包装	Tape and Reel
Mounting Style 安装方式	Surface Mount

FCX3M03900008U1L,Fujicom晶振,FCX-3M无源贴片晶振相关产品

FCX3M03900008U1L	Fujicom晶振	FCX-3M	MHz Crystal	39 MHz	±50ppm	±10ppm	8pF	40 Ohms
FCX3M02454507E3D	Fujicom晶振	FCX-3M	MHz Crystal	24.5454 MHz	±10ppm	±20ppm	7pF	50 Ohms
FCX3M01968704E3D	Fujicom晶振	FCX-3M	MHz Crystal	19.6875 MHz	±10ppm	±20ppm	4pF	70 Ohms
FCX3G03300018Y3J	Fujicom晶振	FCX-3G	MHz Crystal	33 MHz	±30ppm	±20ppm	18pF	50 Ohms
FCX3M01500008E1D	Fujicom晶振	FCX-3M	MHz Crystal	15 MHz	±10ppm	±10ppm	8pF	100 Ohms
FCX3M02211804E1D	Fujicom晶振	FCX-3M	MHz Crystal	22.1184 MHz	±10ppm	±10ppm	4pF	50 Ohms
FCX3M04096006I1L	Fujicom晶振	FCX-3M	MHz Crystal	40.96 MHz	±50ppm	±10ppm	6pF	30 Ohms
FCX3M01693404U1L	Fujicom晶振	FCX-3M	MHz Crystal	16.9344 MHz	±50ppm	±10ppm	4pF	70 Ohms
FCX3M03800008U1L	Fujicom晶振	FCX-3M	MHz Crystal	38 MHz	±50ppm	±10ppm	8pF	40 Ohms
FCX3M02454506Y1G	Fujicom晶振	FCX-3M	MHz Crystal	24.5454 MHz	±20ppm	±10ppm	6pF	50 Ohms
FCX3M01300008I3L	Fujicom晶振	FCX-3M	MHz Crystal	13 MHz	±50ppm	±20ppm	8pF	100 Ohms
FCX3M02266006Y3G	Fujicom晶振	FCX-3M	MHz Crystal	22.66 MHz	±20ppm	±20ppm	6pF	50 Ohms
FCX3M01340006Y1G	Fujicom晶振	FCX-3M	MHz Crystal	13.4 MHz	±20ppm	±10ppm	6pF	100 Ohms
FCX3G03200012E5J	Fujicom晶振	*	-	-	-	-	-	-
FCX3M02266006Y1G	Fujicom晶振	FCX-3M	MHz Crystal	22.66 MHz	±20ppm	±10ppm	6pF	50 Ohms
FCX3M02700008I3L	Fujicom晶振	FCX-3M	MHz Crystal	27 MHz	±50ppm	±20ppm	8pF	50 Ohms
FCX3M05200008I1L	Fujicom晶振	FCX-3M	MHz Crystal	52 MHz	±50ppm	±10ppm	8pF	30 Ohms
FCX3M03072008E1D	Fujicom晶振	FCX-3M	MHz Crystal	30.72 MHz	±10ppm	±10ppm	8pF	40 Ohms
FCX3M04000004E1D	Fujicom晶振	FCX-3M	MHz Crystal	40 MHz	±10ppm	±10ppm	4pF	30 Ohms
FCX3G01431812E5J	Fujicom晶振	*	-	-	-	-	-	-
FCX3M04096007I1L	Fujicom晶振	FCX-3M	MHz Crystal	40.96 MHz	±50ppm	±10ppm	7pF	30 Ohms
FCX3M02822408E1D	Fujicom晶振	FCX-3M	MHz Crystal	28.224 MHz	±10ppm	±10ppm	8pF	50 Ohms
FCX3M04800018E5J	Fujicom晶振	FCX-3M	MHz Crystal	48 MHz	±30ppm	±30ppm	18pF	35 Ohms
FCX3M04915204Y1G	Fujicom晶振	FCX-3M	MHz Crystal	49.152 MHz	±20ppm	±10ppm	4pF	30 Ohms
FCX3M02454507E1D	Fujicom晶振	FCX-3M	MHz Crystal	24.5454 MHz	±10ppm	±10ppm	7pF	50 Ohms
FCX3M02266007E1D	Fujicom晶振	FCX-3M	MHz Crystal	22.66 MHz	±10ppm	±10ppm	7pF	50 Ohms
FCX3M01340006U1L	Fujicom晶振	FCX-3M	MHz Crystal	13.4 MHz	±50ppm	±10ppm	6pF	100 Ohms
FCX3M01500008Y1G	Fujicom晶振	FCX-3M	MHz Crystal	15 MHz	±20ppm	±10ppm	8pF	100 Ohms
FCX3M02266006U1L	Fujicom晶振	FCX-3M	MHz Crystal	22.66 MHz	±50ppm	±10ppm	6pF	50 Ohms
FCX3M01600015E1D	Fujicom晶振	*	-	-	-	-	-	-
FCX3M02457618E5J	Fujicom晶振	FCX-3M	MHz Crystal	24.576 MHz	±30ppm	±30ppm	18pF	50 Ohms
FCX3M02200006U1L	Fujicom晶振	FCX-3M	MHz Crystal	22 MHz	±50ppm	±10ppm	6pF	50 Ohms
FCX3M03900008Y1G	Fujicom晶振	FCX-3M	MHz Crystal	39 MHz	±20ppm	±10ppm	8pF	40 Ohms
FCX3M01843208E1D	Fujicom晶振	FCX-3M	MHz Crystal	18.432 MHz	±10ppm	±10ppm	8pF	70 Ohms
FCX3M01382408Y3G	Fujicom晶振	FCX-3M	MHz Crystal	13.824 MHz	±20ppm	±20ppm	8pF	100 Ohms
FCX3M01928004Y1G	Fujicom晶振	FCX-3M	MHz Crystal	19.28 MHz	±20ppm	±10ppm	4pF	70 Ohms
FCX3M02500018Y3G	Fujicom晶振	FCX-3M	MHz Crystal	25 MHz	±20ppm	±20ppm	18pF	40 Ohms
FCX3M02457608Y3G	Fujicom晶振	FCX-3M	MHz Crystal	24.576 MHz	±20ppm	±20ppm	8pF	50 Ohms
FCX3G01431810Y3J	Fujicom晶振	FCX-3G	MHz Crystal	14.31818 MHz	±30ppm	±20ppm	10pF	80 Ohms
FCX3M02492304I1L	Fujicom晶振	FCX-3M	MHz Crystal	24.9231 MHz	±50ppm	±10ppm	4pF	50 Ohms
FCX3M02457615E3L	Fujicom晶振	*	-	-	-	-	-	-
FCX3M01300008Y1G	Fujicom晶振	FCX-3M	MHz Crystal	13 MHz	±20ppm	±10ppm	8pF	100 Ohms
FCX3M01300008E3D	Fujicom晶振	FCX-3M	MHz Crystal	13 MHz	±10ppm	±20ppm	8pF	100 Ohms
FCX3M03900008Y3G	Fujicom晶振	FCX-3M	MHz Crystal	39 MHz	±20ppm	±20ppm	8pF	40 Ohms
FCX3M02266007I3L	Fujicom晶振	FCX-3M	MHz Crystal	22.66 MHz	±50ppm	±20ppm	7pF	50 Ohms
FCX3M01340007I1L	Fujicom晶振	FCX-3M	MHz Crystal	13.4 MHz	±50ppm	±10ppm	7pF	100 Ohms
FCX3M02700008U1L	Fujicom晶振	FCX-3M	MHz Crystal	27 MHz	±50ppm	±10ppm	8pF	50 Ohms
FCX3M04400007U3L	Fujicom晶振	FCX-3M	MHz Crystal	44 MHz	±50ppm	±20ppm	7pF	30 Ohms
FCX3M04400007Y1G	Fujicom晶振	FCX-3M	MHz Crystal	44 MHz	±20ppm	±10ppm	7pF	30 Ohms
FCX3M01968704E1D	Fujicom晶振	FCX-3M	MHz Crystal	19.6875 MHz	±10ppm	±10ppm	4pF	70 Ohms
FCX3M04915204E3D	Fujicom晶振	FCX-3M	MHz Crystal	49.152 MHz	±10ppm	±20ppm	4pF	30 Ohms
FCX3M04400007U1L	Fujicom晶振	FCX-3M	MHz Crystal	44 MHz	±50ppm	±10ppm	7pF	30 Ohms
FCX3M02200006E3D	Fujicom晶振	FCX-3M	MHz Crystal	22 MHz	±10ppm	±20ppm	6pF	50 Ohms
FCX3M02266007I1L	Fujicom晶振	FCX-3M	MHz Crystal	22.66 MHz	±50ppm	±10ppm	7pF	50 Ohms
FCX5G02000018E5G	Fujicom晶振	-	-	-	-	-	-	-
FCX5M02457610E1D	Fujicom晶振	FCX-5M	MHz Crystal	24.576 MHz	±10ppm	±10ppm	10pF	45 Ohms
FCX5G02700018E5L	Fujicom晶振	-	-	-	-	-	-	-
FCX5M01431818Y5J	Fujicom晶振	FCX-5M	MHz Crystal	14.318 MHz	±30ppm	±30ppm	18pF	45 Ohms
FCX5M04000018Y5J	Fujicom晶振	FCX-5M	MHz Crystal	40 MHz	±30ppm	±30ppm	18pF	45 Ohms
FCX5G03000016E5G	Fujicom晶振	-	-	-	-	-	-	-
