HE-MCC-21-32.768K-12.5,HEC无源贴片晶振,HE-MCC-21谐振器

频率：32.768KHz

尺寸：2.0 x 1.2 mm

原厂型号 Original model ：	HE-MCC-21-32.768K-12.5
品牌 brand ：	HEC无源晶振
型号名称 Model name：	HE-MCC-21
Type 系列：	KHz Crystal
频率 frequency ：	32.768K晶振
Frequency Stability频率稳定度	-
frequency tolerance频率容差	± 20ppm
Load capacitance 负载电容	12.5pf
Size / Dimension 尺寸	2.0 x 1.2 mm

订购热线：13380314981

HE-MCC-21-32.768K-12.5,HEC无源贴片晶振,HE-MCC-21谐振器详细参数

原厂型号 Original model ：	HE-MCC-21-32.768K-12.5
品牌 brand ：	HEC无源晶振
型号名称 Model name：	HE-MCC-21
Type 系列：	KHz Crystal
频率 frequency ：	32.768KHz
Frequency Stability频率稳定度	美国进口晶振 -
frequency tolerance频率容差	± 20ppm
Load capacitance 负载电容	12.5pf

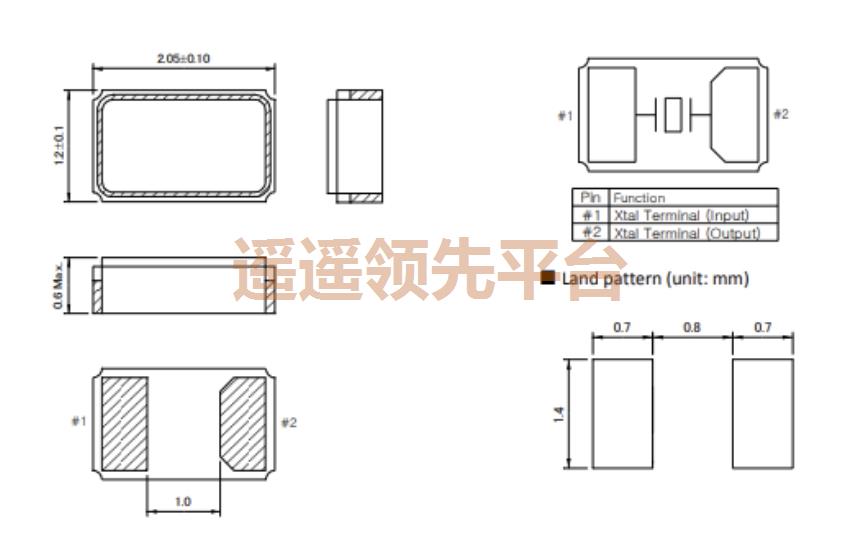

Size / Dimension 尺寸	2.0 x 1.2 mm
Package Height 厚度	0.6 mm
ESR (Equivalent Series Resistance)ESR（等效串联电阻）	70
Operating Temperature 工作温度	-40 °C to +85 °C
Termination 脚位	2-pad
Package Type 封装类型	2-SMD
Packaging 包装	Tape and Reel
Mounting Style 安装方式	Surface Mount
