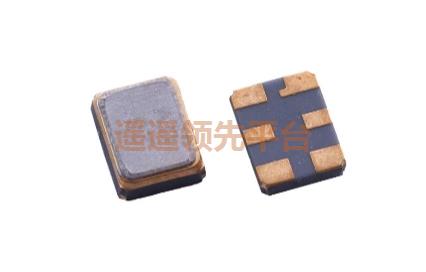

TX0889BCAO54石英晶振,台产TST贴片晶振,TCXO温补晶振

频率：26 MHz

尺寸：2.00mm x 1.60mm

Original model 原厂编码	TX0889BCAO54
Manufacturer 品牌	TST晶振
Part Series 型号	TX0889BCAO54
Type 类型	TCXO
Frequency 频率	26 MHz
Output Type 输出方式	-
Supply Voltage 电压	1.8V
Frequency Stability 频率稳定性	±2ppm
Operating Temperature 工作温度	-40°C ~ 85 °C
Current Consumption 电流消耗	2mA
Package Size 包装尺寸	2.00mm x 1.60mm

订购热线：13380314981

TX0889BCAO54石英晶振,台产TST贴片晶振,TCXO温补晶振详细参数

Original model 原厂编码	TX0889BCAO54
Manufacturer 品牌	TST嘉硕晶振
Part Series 型号	TX0889BCAO54
Type 类型	TCXO
Frequency 频率	26 MHz
Output Type 输出方式	CMOS
Supply Voltage 电压	1.8V
Frequency Stability 频率稳定性	±2ppm
Operating Temperature 工作温度	-40°C ~ 85 °C
Current Consumption 电流消耗	2mA
Package Size 包装尺寸	2.00mm x 1.60mm
Package Height 厚度	0.80mm
Termination 脚位	6 Pad
Package Type 封装类型	6-SMD
Lead Free 无铅	Yes
Mounting Style 安装方式	Surface Mount
Packaging 包装	Tape and Reel

TX0889BCAO54石英晶振,台产TST贴片晶振,TCXO温补晶振相关产品

TX0770BA5340有源晶振	VCTCXO	26	2.5	2ppm/2.5ppm/-40C~+85C	2.5x2.0x0.8
TX0816CA1242	VCTCXO	26	1.8	1ppm/0.5ppm/-40C~+85C	2.5x2.0x0.8
TX0844A	VCTCXO	26	1.9	1ppm/0.5ppm/-30~+85C	1.6x1.2x0.7
TX0857EAAO52	VCTCXO	26	1.8	1ppm/0.5ppm/-40C~+85C	2.0x1.6x0.7
TX0864BC10BH	VCTCXO	26	2.8	1ppm/0.5ppm/-30C~+85C	2.5x2.0x0.8
TX0864CC1045	VCTCXO	26	1.62~1.86	1.0ppm/0.5ppm/-40C~+85C	2.5x2.0x0.8
TX0889BCAO54	VCTCXO	26	1.8	1.0ppm/2.0ppm/-40C~+85C	2.0x1.6x0.7
TX0929AA2652	VCTCXO	26	1.8	1ppm/1ppm/-40C~+125C	2.0x1.6x0.7
TX1010BA1064	VCTCXO	26	1.8	0.5ppm/0.5ppm/-30C~+85C	1.6x1.2x0.7
TX1033AF2053	VCTCXO	26	1.8~3.3	1.0ppm/0.5ppm/-30C~+85C	2.0x1.6x0.7
TX0148A	VCTCXO	27	3.3	50ppm/-10C~+70C	7.0x5.0x1.8
TX0308A	VCTCXO	30	2.8	2.5ppm/-30C~+85C	3.2x2.5x1.2
TX0338A	VCTCXO	30	2.85	2.5ppm/2ppm/-30C~+75C	3.2x2.5x1.2
TX0438A	VCTCXO	30.72	3.3	50ppm/-40C~+85C	7.0x5.0x1.8
TX0926AA5142	VCTCXO	30.72	3.3	2ppm/2.5ppm/-30C~+85C	2.5x2.0x0.8
TX0984BA4815	VCTCXO	30.72	3.3	0.5ppm/0.28ppm/-40C~+85C	7.0x5.0x1.9
TX0878AC13BH	VCTCXO	31.25	3.3	1ppm/1.5ppm/-40C~+85C	3.2x2.5x1.2
TX0379A	VCTCXO	32	3	3ppm/2.5ppm/-30C~+75C	3.2x2.5x1.2
TX0449BA1130	VCTCXO	32.3768		1.0ppm/1.0ppm/-30C~+85C	3.2x2.5x0.38
TX0460A	VCTCXO	32	3.3	2.0ppm/1.0ppm/-20C~+90C	7.0x5.0x1.8
TX0545A	VCTCXO	32	3	1.5ppm/2ppm/-30C~+85C	3.2x2.5x1.2
TX0783A	VCTCXO	32	3.3	2ppm/5ppm/-30C~+85C	3.2x2.5x1.2
TX0802EABA53	VCTCXO	32	3.3	1.0ppm/1.0ppm/-40C~+85C	2.0x1.6x0.7
TX0158A	VCTCXO	35.328	3.3	50ppm/50ppm/-10C~+70C	7.0x5.0x1.8
TX0215A	VCTCXO	36	3.3	50ppm/50ppm/-40C~+85C	7.0x5.0x1.8
TX0691B	VCTCXO	37.4	3	1ppm/2.5ppm/-40C~+85C	2.0x1.6x0.7
TX0792CA13BH	VCTCXO	38.4	3	1.0ppm/1.5ppm/-40C~+85C	2.5x2.0x0.8
TX0792DA1242	VCTCXO	38.4	1.8	0.5ppm/0.5ppm/-40C~+85C	2.5x2.0x0.8
TX0807EA1252	VCTCXO	38.4	1.68~3.6	1.0ppm/0.5ppm/-40C~+85C	2.0x1.6x0.7
TX0908CA10BH	VCTCXO	38.4	3.3	0.5ppm/0.5ppm/-30C~+85C	2.0x1.6x0.7
TX0225A	VCTCXO	40	2.8	1ppm/2ppm/-30C~+85C	3.2x2.5x1.3
TX0537A	VCTCXO	40	1.8	2.5ppm/2ppm/-30C~+75C	3.2x2.5x1.2
TX0659E	VCTCXO	40	1.8	1.0ppm/2.0ppm/-40C~+85C	2.0x1.6x0.7
TX0873AA12AE	VCTCXO	40	3.3	0.5ppm/0.5ppm/-40C~+85C	2.5x2.0x0.8
TX0873CA1345	VCTCXO	40	1.8	1.0ppm/1.0ppm/-40C~+85C	2.5x2.0x0.8
TX0559A	VCTCXO	45.814583	2.8	2.5ppm/0.5ppm/-20C~+75C	3.2x2.5x1.2
TX0560A	VCTCXO	48.314583	2.8	2.0ppm/2.0ppm/-20C~+75C	3.2x2.5x1.2
TX0850AA2554	VCTCXO	48	1.7~3.6	1ppm/2.5ppm/-40C~+85C	2.0x1.6x0.7
TX0859AA5352	VCTCXO	48	3.3	1.0ppm/2.5ppm/-40C~+85C	2.0x1.6x0.7
TX0970CA1140	VCTCXO	48	3.3	1.0ppm/2.0ppm/-40C~+85C	2.5x2.0x0.8
TX0370B	VCTCXO	50	3.3	1ppm/1.5ppm/-40C~+85C	3.2x2.5x1.2
TX0430A	VCTCXO	50	3	1.0ppm/2.5ppm/-30C~+80C	3.2x2.5x1.2
TX0430B	VCTCXO	50	3.3	1ppm/2.5ppm/-30C~+80C	3.2x2.5x1.2
TX0568C	VCTCXO	50	3	0.5ppm/0.5ppm/-20C~+70C	2.5x2.0x0.8
TXC0004A	VCTCXO	50	3.3	1ppm/2.5ppm/-40C~+85C	2.5x2.0x0.8
TX0369B	VCTCXO	52	3.3	1.5ppm/3ppm/-20C~+85C	2.5x2.0x0.8
TX0763C	VCTCXO	52	3.3	1ppm/2.5ppm/-10C~+75C	2.0x1.6x0.7
TX0983BA10BH	VCTCXO	52	1.8	1ppm/0.5ppm/-30C~+85C	1.6x1.2x0.7
TX0147A	VCTCXO	54	3.3	25ppm/0C~+70C	7.2x5.2x1.8
TX0821A	VCTCXO	56	3.3	1ppm/2.5ppm/-30C~+85C	2.0x1.6x0.7
TX0582A	VCTCXO	61.44	3.3	50ppm/-40C~+85C	7.0x5.0x1.6
TX0991AABV52	VCTCXO	80	2.8	1ppm/1ppm/-40C~+85C	2.0x1.6x0.7
TX0171A	VCTCXO	100	3.3	-25ppm/25ppm/0C~+70C	7.2x5.2x1.8
TV0171WA6215	VCTCXO	122.88	3.3	25ppm/-40C~+85C	7.0x1.5x1.8
TV0177AACM01	VCTCXO	122.88	3.3	25ppm/-40C~+85C	14x9x3.6
TX0444A	VCTCXO	122.88	3.3	50ppm/-40C~+85C	7.0x5.0x1.8
TX0172A	VCTCXO	125	3.3	5ppm/25ppm/0C~+70C	7.2x5.2x1.8
TX0139A	VCTCXO	155.52	3.3	50ppm/-5C~+85C	7.2x5.2x1.8
TX0141A	VCTCXO	622.08	3.3	50ppm/-5C~+85C	7.2x5.2x1.8
